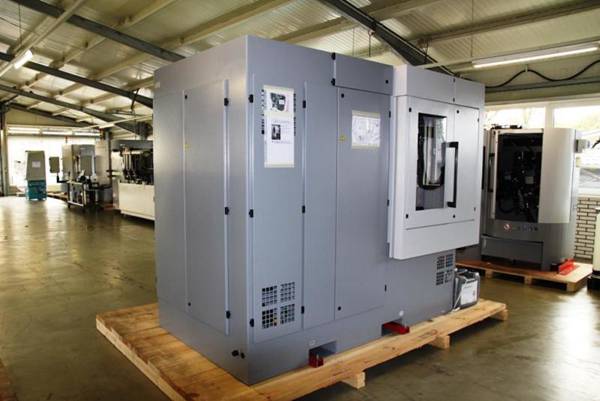

Wire Cut Erosion machine for metalworking tools (CNC-controlled)孚尔默电腐蚀金属加工工具机床（数控）Made by Vollmer, model型号QWD 750 H, year出厂时间2015

Description描述:

Suitable to automatically sharpen PKD-tipped milling cutters, cylindrical tools, discoid tools etc.适合全自动生产PKD焊接刀具,圆柱刀具,盘式刀具等.

Specifications:

Milling cutters outside dia. up to 320 mm, cutting edge length up to 480 mm, shaft tools diameter 10 - 320mm, cutting length max. 480 mm, discoid tools outside dia. up to 320 mm, outside dia. cutting edge lengthup to 480 mm, max. workpiece weight 20 kg, traversing range X-axis 500 mm, traversing range Y-axis 300mm, traversing range W-axis 200 mm, A-axis swivel range 360?, workpiece holder SK 50, E axis pivotrange 180?, dimensions machine approx. w x d x h = 2535 x 2200 x 2280 mm, weight ca. 4800 kg,connected load ca. 5,4 kW (400 volts / 50 Hz), colour grey RAL 7045/ light grey RAL 7047.

最大铣刀外径320 mm,最大盘状刀具外径480 mm，杆状刀具直径10-320 mm，最大切削长度480mm，盘状刀具外径320mm，切削边长度480，最大工件重量20 kg,纵向X轴行程500mm,Y-axis轴行程300mm,W-axis轴行程200 mm,A-axis轴旋转行程360?，x h = 2535 x 2200 x 2220 mm, weight ca.重量约4800 kg, connected load ca.装载功率约4.5 kW (400volts / 50 Hz), colour grey颜色RAL 7045/ light grey RAL 7047.

Accessories:

Integrated loading system and workpiece magazine for automated processing of up to 36 workpieces.内置最多36工件自动程序上料机Magazine and loading system are 4 axis CNC controlled.链式上料系统为4轴数控Total enclosure全包围,Coolant system for dielectric fluid,磨削油冷却系统Automatic fire extinguishing system,自动灭火系统Probe,探针Machine lamp,机床灯

Automatic central lubrication,自动中央润滑

Workhead工件头ISO 50,工件头

Program for eroding over the workpiece centre on the face cutting edge and for free erosion,灵活磨削程序端齿到边

Vollmer CAD / CAM system (ARES-Commander) for working of profiled workpieces with additional

software for expert programming,带专家程序孚尔默CAD/CAM系统

Hard & software for DNC service.DNC服务

Additional Options available:可附加选项--

Magazine disc (in HSK or SK)成列架（HSK或SK）

Set of gripper jaws for workpiece automation in HSK or SK自动工件卡爪位

Adaption for A-axis to HSK6 or SK including measuring mandrel A轴测量轴等

SUS GmbH Tel: 49 (0) 4471 9292-22 Fax: 49 (0) 4471 9292-26Emstekere Stra?e 127, D-49661 Cloppenburg, Germanywww.sus.de，2/2
