Description:描述

Suitable to automatically sharpen PKD-tipped milling cutters, cylindrical tools, discoid tools etc.

适合于自动磨削PKD-焊接刀具、圆柱刀具、盘形刀具等等

Erosion machine for diamond tipped metalworking tools (CNC-controlled) Made by Vollmer, model QWD 750 Pro Rebuilding 再制造2017

Specifications 规格:

Milling cutters outside dia. up to 最大铣刀外径达到200 mm, cutting edge length up to 最大铣刀切削边长度达200 mm, shaft tools diameter 杆状刀具直径10 - 100 mm, cutting length max.杆状刀具最大切削长度 500 mm,

discoid tools outside dia. up to 盘状刀具外径达到200 mm, max. workpiece weight 最大工件重量20 kg,

angential clearance angle to 6°, radial clearance angle -10° to +6°, radial and axial clearance angle 30°,

chamfering up to 45°, spiral cutting to 45°,

traversing range X-axis 轴行程长度220 mm, traversing range Y-axis 轴行程长度280 mm, traversing range W-axis 轴行程长度150 mm, E-axis swivel range 回转行程120°,

spindle speed 磨削轴速度80 - 2000 rpm, workpiece holder 工件夹持标准 ISO 50,

dimensions machine 机床大小 w 宽 x d 深 x h 高 = 2235 x 2630 x 2270 mm, weight 重量大约 ca. 3500 kg,

connected load 装载负荷大约 ca. 3.4 kW (400 volts / 50 Hz), colour 颜色 grey RAL 9003 / 7011.

Accessories 附件:

Total enclosure 全包围,

cooling system for dielectric fluid 电解液冷却系统, Tailstock 托架, A-axis ISO50工件轴锥度 Probe 探针,

automatic central lubrication 自动中央润滑,

SUS GmbH Tel: +49 (0) 4471 9292-22 Fax: +49 (0) 4471 9292-26

Emstekere Stra?e 127, D-49661 Cloppenburg, Germanywww.sus.de

，7/8

来自德国的二手刀具磨床专家为您提供一流品质的二手设备

machine lamp 机床灯, Mist Extractor 油雾分离器

stepless speed control 无极速度控制,

automatic fire extinguishing system 自动灭火系统

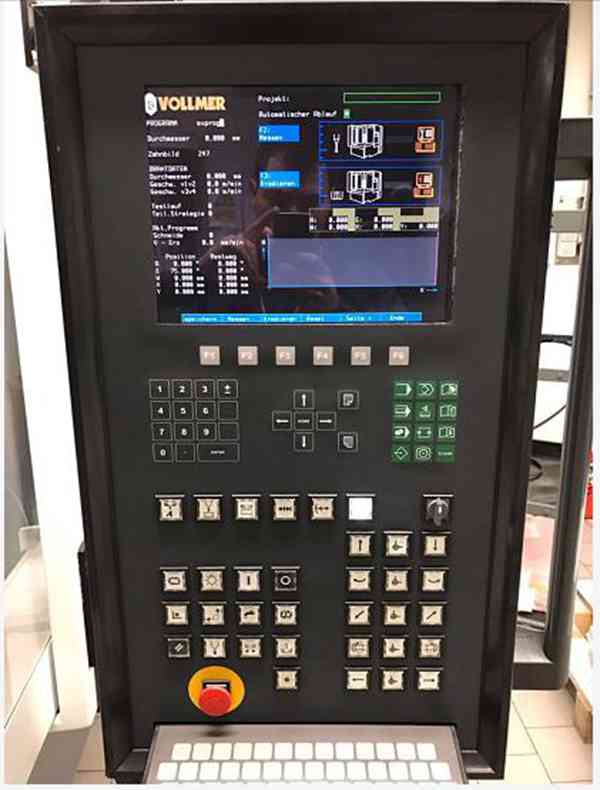

1 PC with Vollmer path management system software.孚尔默系统软件电脑 Software Exprog (?Expert Mode“ for metal working)专家版软件
