Description:描述

Suitable to automatically sharpen PKD-tipped milling cutters, cylindrical tools, discoid tools etc.

适合于自动磨削PKD-焊接刀具、圆柱刀具、盘形刀具等等

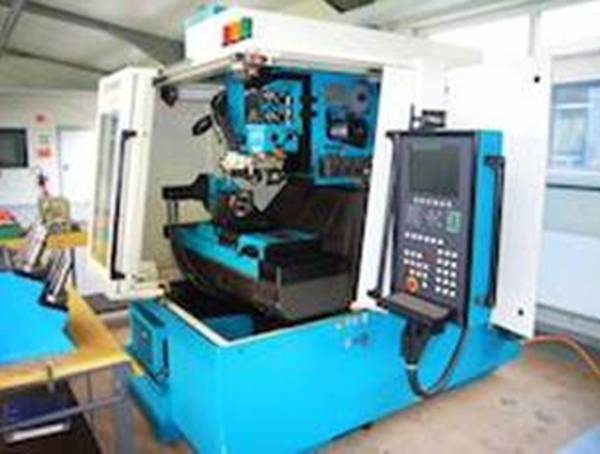

Erosion machine for diamond tipped metalworking tools (CNC-controlled)
Made by Vollmer, model QWD 750 （由qwd75p serial no.170, year1999，床身翻新）

Specifications规格:
Milling cutters outside dia. up to 最大铣刀外径达到200 mm,

cutting edge length up to最大铣刀切削边长度达200 mm,

shaft tools diameter 杆状刀具直径10 - 100 mm,

cutting length max.杆状刀具最大切削长度 500 mm,

discoid tools outside dia. up to 盘状刀具外径达到200 mm,

max. workpiece weight 最大工件重量20 kg,

angential clearance angle to 6°,

radial clearance angle -10° to +6°,

radial and axial clearance angle 30°,

chamfering up to 45°, spiral cutting to 45°,

traversing range X-axis 轴行程长度220 mm,

traversing range Y-axis 轴行程长度280 mm,

traversing range W-axis 轴行程长度150 mm,

E-axis swivel range 回转行程120°,

spindle speed 磨削轴速度80 - 2000 rpm,

workpiece holder 工件夹持标准ISO 40,

dimensions machine机床大小 w宽 x d深 x h高 =  2235 x  2630 x  2270 mm,

weight 重量大约ca. 3500 kg,

connected load 装载负荷大约ca. 3.4 kW (400 volts / 50 Hz),

colour 颜色turquoise blue RAL 5018 / light grey RAL 7047.
Accessories附件:
Total enclosure全包围,

cooling system for dielectric fluid电解液冷却系统,

Tailstock托架,

Probe探针,

automatic central lubrication自动中央润滑,

machine lamp机床灯,

Dust Extractor抽风机,

stepless speed control无极速度控制,

automatic fire extinguishing system自动灭火系统
