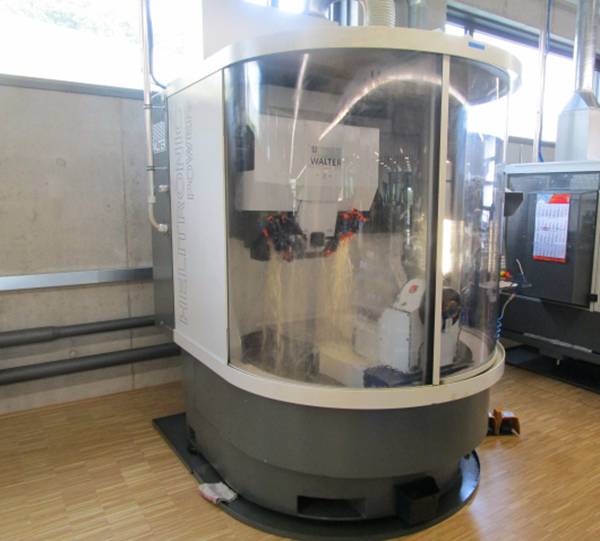

Universal tool and cutter grinder (CNC controlled)数控万能工具磨床

Made by Walter瓦尔特生产, model 型号Helitronic Power power, s/n编号 7006, year出厂 1998, 系统Walter XP



Description描述:

Suitable for manufacturing and regrinding wood- and metalworking tools of all kinds.

适合生产与修磨所有硬质合金与木工刀具



Specifications规格:

Longitudinal traverse (X-axis) 490 mm, vertical traverse (Y-axis) 320 mm, cross traverse (Z-axis) 660 mm, rotary table swivelling range (C-axis) +/- 200°, work head ISO 50, centre height (with / without worktable) 145 / 190 mm, max. diameter of workpiece 240 mm, max. length of workpiece 370 mm, max. dia. of wheel 200 mm, peak performance 18 kW , grinding spindle speed 0 - 8500 rpm, connected load approx. 25 kW (400 volts / 50 Hz), dimensions w x d x h = 2170 x 2930 x 2280 mm, weight approx. 4500 kg, colour grey RAL 7035 / grey RAL 7043.

工作范围：X轴行程490mm，Y轴行程320mm， Z轴行程660mm，C轴可旋转+/- 200°，工件轴适配ISO50，中心高（带/不带工作台）145/190mm，工件最大直径240mm，工件最大长度370mm， 砂轮最大直径200mm，主轴功率18kW，主轴速度范围0-8500rpm,装载功率约25KW,400 volts / 50 Hz / 25 KVA，重量约4450公斤，尺寸w x d x h =  2170 x 2930 x 2280 mm，颜色RAL 7035 / 7043灰。

Accessories附件:

Control HMC 500 XP控制系统,

Software package 1 (cylindrical cutters圆柱刀具),

software package 3 (drills and step drills钻头及阶梯钻),

Heliflute & Cone flute calculation software开槽软件

stepless speed control,步进速度控制

probe,探针

automatic central lubrication自动中央润滑

pneumatic workpiece clamping,液压夹持系统

oil collecting pan,集油盘

2 grinding wheel flanges砂轮杆.
