石墨板材摩擦磨损试验机厂家

价格:48450元浏览:39次联系:刘元元 / 15132636097 / 企业:北京北广精仪仪器设备有限公司留言店铺收藏

石墨板材摩擦磨损试验机厂家

石墨板材摩擦磨损试验机厂家  适用范围:

适用于塑料制品、橡胶制品、石墨板材或其他复合材料的滑动摩擦,磨损性能测试,也可对试验中试样的磨擦力、磨擦系数和磨损量进行测定。也可对试验中试样的磨擦力、磨擦系数和磨损量进行测定。

Graphite sheet friction and wear testing machineScope of application:

It is suitable for sliding friction, wear testing of plastic products, rubber products, graphite plate or other composite materials. It can also be used to measure the friction force, friction coefficient and wear amount of the test sample. The friction force, friction coefficient and wear volume of the specimens can also be measured.

Graphite sheet friction and wear testing machine特点:

1、速度精度:1%

2、负荷精度:0.5%

3、摩擦力矩精度:1%

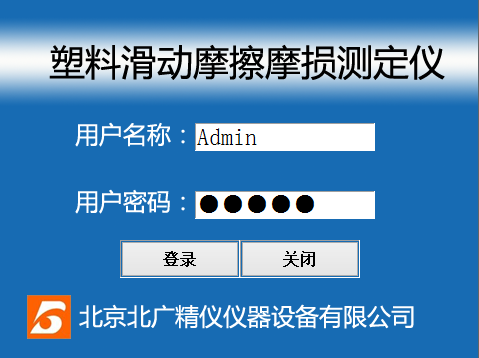

4、具有试验人员分级管理功能。

5、实时显示摩擦系数-时间,扭矩-时间曲线。

6、试验报告可打印试验参数,试验数据,曲线,备注等信息,简单,方便,可编辑。

7、试样尺寸: 30mm?7mm?6mm

8、转动速度: 0-500转/分 (可调)

9、负 荷: 196N ? 0.1%(可增至392N)

10、摩擦环尺寸:¢40?10mm ,倒角0.5?45?,外圆表面与内圆同心度偏差小于0.01

11、摩擦环材质:45号钢,淬火,热处理HRC40-45,外圆表面光洁度▼8

12、摩擦力矩: 0--4N?m

13、砝码重量:4KG砝码一件,1KG砝码4件,可实现重量叠加功能。

14、计数器精度:1S

15、传感器测量精度:1% FS

16、系统运行稳定,可靠性高。

17、结构紧凑,使用方便,简单。

18、采用高精度电机、驱动机、传感器,精度高。

19、主要配置及附件:(计算机控制)

1、试验主机一台

2、高精度扭矩传感器一只

3、计算机数据采集卡一块

4、计算机一台(品牌)

5、彩色激光喷墨打印机一台

6、计算机控制软件一套

7、4Kg 砝码两件(备用一套)

8、标准磨擦环四件(备用两件)

9、产品使用说明书一份

10、产品合格证

11、产品装箱单一份

12、整机重量:约87 公斤

Graphite sheet friction and wear testing machine试验设备

1、传动系统,用来带动圆环以给定的转速旋转,精确到5%以内,并要求圆环安装部位轴的径向跳动小于0.01毫米。

2、加载系统,对试样和圆环,可施加法向力,精确到5%以内。

3、测定和记录摩擦力矩系统,精确到5%以内。

4、记录圆环转数的计数器或记时器,精确到1%以内。

5、试样夹具结构和尺寸见图2,并附配垫圈 4 GB 848-76,沉头螺钉M3?0.35长10毫米。要保证试样安置后无轴向窜动。

注:试验设备本标准推荐采用M-200型磨损试验机。

6、本试验中圆环的材质对塑料磨损试验结果影响很大,因此本标准采用的圆环,其外形尺寸见图3。

材料为45号钢,圆环要求整体淬火,热处理HRC 40~45,外圆表面光洁度▽8,倒角处均为0.5?45度,外圆表面与内圆同心度偏差小于0.01.

圆环可以反复使用,每次试验后,需重新磨削。当外径小于36毫米就不能再用。作仲裁试验时必须用直径40毫米的圆环。

注:圆环材质也可按产品标准另定。

test equipment

1. The transmission system is used to drive the ring to rotate at a given speed, accurate to within 5%, and requires the radial runout of the shaft at the installation location of the ring to be less than 0.01 millimeters.

2. Loading system, can apply normal force to the sample and ring, accurate to within 5%.

3. Measure and record the friction torque system with an accuracy of within 5%.

4. A counter or timer that records the number of revolutions of a circular ring, accurate to within 1%.

5. The structure and dimensions of the sample fixture are shown in Figure 2, and are equipped with washers 4 GB 848-76 and countersunk screws M3 ? 0.35, which are 10 millimeters long. Ensure that there is no axial movement after the sample is placed.

Note: This standard recommends using the M-200 wear testing machine for testing equipment.

6. The material of the circular ring in this experiment has a significant impact on the results of the plastic wear test. Therefore, the circular ring used in this standard has its external dimensions shown in Figure 3.

The material is 45 steel, and the circular ring requires overall quenching and heat treatment with HRC 40-45. The surface smoothness of the outer circle is ▽ 8, and the chamfers are all 0.5 ? 45 degrees. The concentricity deviation between the outer and inner circles is less than 0.01

The circular ring can be reused and needs to be re ground after each test. When the outer diameter is less than 36 millimeters, it cannot be used again. When conducting arbitration tests, a circular ring with a diameter of 40 millimeters must be used.

Note: The material of the circular ring can also be determined separately according to product standards.

试验步骤

1、圆环应清除油污,贮存于干燥缸内以防生锈。

2、试样经状态调节后用感量为0.1毫克的分析天平称取其质量(M1)。

3、把试样装进夹具,摩擦面用角尺校正并使它与圆环的交线外于试样正中。装好摩擦力矩记录纸,开机校好零点。

4、再次用乙醇、丙酮等不与塑料起作用的溶剂仔细清除试样和圆环上的油污,此后不准再用手接触试样和圆环的表面。

5、平稳地加荷至选定的负荷值。

6、对磨2小时后停机卸负荷,取下试样和圆环,清理试样表面后,用精度不低于0.02毫米的量具测量磨痕宽度,或在试验环境下存放1小时后称取试样质量(m2)。

7、读取摩擦力矩值。

Experimental steps

1. The circular ring should be cleaned of oil stains and stored in a drying cylinder to prevent rusting.

2. After adjusting the state of the sample, weigh its mass (M1) using an analytical balance with a sensitivity of 0.1 milligrams.

3. Insert the sample into the fixture, calibrate the friction surface with an angle ruler, and ensure that its intersection with the circular ring is outside the center of the sample. Install the friction torque recording paper and start the machine to calibrate the zero point.

4. Carefully remove the oil stains on the sample and the ring using solvents such as ethanol and acetone that do not work with plastic. After that, do not touch the surface of the sample and ring with your hands.

5. Smoothly load to the selected load value.

6. After grinding for 2 hours, stop the machine to unload the load, remove the sample and ring, clean the surface of the sample, measure the width of the grinding mark with a measuring tool with an accuracy of not less than 0.02 millimeters, or weigh the sample mass (m2) after storing it in the test environment for 1 hour.

7. Read the torque value of friction force.

试样

塑料试样尺寸

试样尺寸见图1.

试样要求

试样表面平整,无气泡、裂纹、分层、明显杂质和加工损伤等缺陷。每组试样不少于3个。

试验设备

1、传动系统,用来带动圆环以给定的转速旋转,精确到5%以内,并要求圆环安装部位轴的径向跳动小于0.01毫米。

2、加载系统,对试样和圆环,可施加法向力,精确到5%以内。

3、测定和记录摩擦力矩系统,精确到5%以内。

4、记录圆环转数的计数器或记时器,精确到1%以内。

5、试样夹具结构和尺寸见图2,并附配垫圈 4 GB 848-76,沉头螺钉M3?0.35长10毫米。要保证试样安置后无轴向窜动。

注:试验设备本标准推荐采用M-200型磨损试验机。

6、本试验中圆环的材质对塑料磨损试验结果影响很大,因此本标准采用的圆环,其外形尺寸见图3。

材料为45号钢,圆环要求整体淬火,热处理HRC 40~45,外圆表面光洁度▽8,倒角处均为0.5?45度,外圆表面与内圆同心度偏差小于0.01.

圆环可以反复使用,每次试验后,需重新磨削。当外径小于36毫米就不能再用。作仲裁试验时必须用直径40毫米的圆环。

注:圆环材质也可按产品标准另定。

test equipment

1. The transmission system is used to drive the ring to rotate at a given speed, accurate to within 5%, and requires the radial runout of the shaft at the installation location of the ring to be less than 0.01 millimeters.

2. Loading system, can apply normal force to the sample and ring, accurate to within 5%.

3. Measure and record the friction torque system with an accuracy of within 5%.

4. A counter or timer that records the number of revolutions of a circular ring, accurate to within 1%.

5. The structure and dimensions of the sample fixture are shown in Figure 2, and are equipped with washers 4 GB 848-76 and countersunk screws M3 ? 0.35, which are 10 millimeters long. Ensure that there is no axial movement after the sample is placed.
